HD IP Video Management Solutions
are Built for Users.™


NVR Series Powered by DW Spectrum®IPVMS

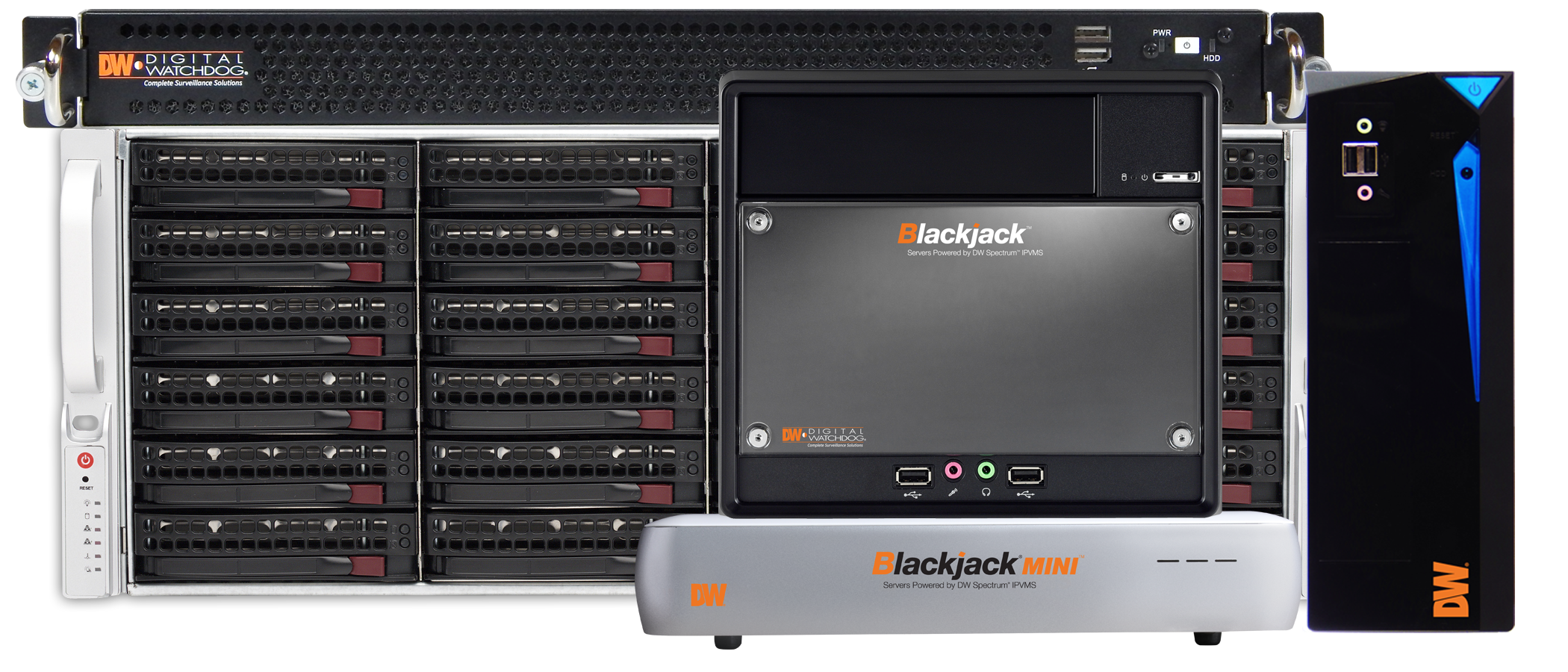

Blackjack® NVRs powered by DW Spectrum® are powerful and user-friendly video management solutions, highly optimized to provide unlimited scalability, unmatched bandwidth savings and simplified system setup and management. The architecture is cross-platform supporting Windows®, Linux® and MAC® platforms for complete optimization to match any application.



Product images:
DESCRIPTION Blackjack E-RACK 4U -36 Bay Blackjack E-RACK 4U -24 Bay Blackjack E-RACK 3U - 16 Bay Blackjack E-RACK 2U -12 Bay Blackjack P-RACK 2U w/RAID Blackjack P-RACK 2U Blackjack P-RACK 1U Blackjack CUBE-DL Blackjack CUBE Blackjack CUBE-LX Blackjack BOLT Blackjack Mini
PART NUMBER Windows model DW-BJER4UXXT DW-BJER4UXXT DW-BJER3UXT DW-BJER2UXXT DW-BJPR2UXXT DW-BJP2UXT DW-BJP1UXT DW-BJCUBExT-DL DW-BJCUBExT N/A N/A N/A
Linux Ubuntu model DW-BJER4UXXT-LX DW-BJER4UXXT-LX DW-BJER3UXT-LX DW-BJER2UXXT-LX DW-BJPR2UXXT-LX DW-BJP2UXT-LX DW-BJP1UXT-LX N/A N/A DW-BJCUBExT-LX DW-BJBOLTxT-LX DW-BJMINIxT / DW-BJMINIxTR
Maximum IP Cameras 128 (2.1MP/1080p @30fps, with medium recording quality) 128 (2.1MP/1080p @30fps, with medium recording quality) 128 (2.1MP/1080p @30fps, with medium recording quality) 128 (2.1MP/1080p @30fps, with medium recording quality) 128 (2.1MP/1080p @30fps, with medium recording quality) 128 (2.1MP/1080p @30fps, with medium recording quality) 64 (2.1MP/1080p @30fps, with medium recording quality) 96 (2.1MP/1080p @30fps, with medium recording quality) 64 (2.1MP/1080p @30fps, with medium recording quality) 16 (2.1MP/1080p @30fps, with medium recording quality) 16 (2.1MP/1080p @30fps, with medium recording quality) 12 (2.1MP/1080p @30fps, with medium recording quality)
Included IP Licenses 8 4 N/A
Form Factor Rack mount Desktop / Cube Slim Desktop
Operating System Windows® 10 64 Bit DW-BJER4UXXT DW-BJER4UXXT DW-BJER3UXT DW-BJER2UXXT DW-BJPR2UXXT DW-BJP2UXT DW-BJP1UXT DW-BJCUBExT-DL DW-BJCUBExT N/A
Linux® Ubuntu® DW-BJER4UXXT-LX DW-BJER3UXT-LX DW-BJER2UXXT-LX DW-BJPR2UXXT-LX DW-BJP2UXT-LX DW-BJP1UXT-LX N/A DW-BJCUBExT-LX DW-BJBOLTxT-LX N/A
Embedded Linux® N/A DW-BJMINIxT
DW-BJMINIxTR
OS on SSD 150GB SSD (RAID1 mirrored) 150GB SSD N/A
N/A Option: DW-SSD80 – second SSD for mirroring the OS *
CPU Intel® i7® Processor Intel® i5® processor Intel i7® processor Intel® i5® processor Intel® i3® processor Intel® quad core N3150 processor ARM Cortex-A7 octa-core
Option: DW-CPUI7 - upgrade processor to i7*
Memory 16GB 4GB 4GB 2GB LPDDR3
Option: DW-RME8 - upgrade memory to 8GB*
Ethernet port 2x gigabit ethernet ports (RJ45) 2x gigabit ethernet port (RJ45)
Option: DW-R2NIC - upgrade dual 1GB NIC card Option: DW-R2NIC - upgrade dual 1GB NIC card OR DW-R4NIC - upgrade quad 1GB NIC card * Option: DW-RME8 - upgrade memory to 16GB*
System Max Video Storage Rate (Mbps) 600 Mbps 360 Mbps 480 Mbps 360 Mbps 80 Mbps 60 Mbps
Storage Maximum Hard Drives 2 x SSD + 34 x HDD 2x SSD + 24 x HDD 2 x SSD + 16 x HDD 2 x SSD + 12 x HDD 6 x SATA HDD 1 x SSD + 7 x HDD 1 x SSD + 3 x HDD 1 x SSD + 2 x SATA HDD 3 x HDD 2 x SATA HDD
Maximum Storage 320TB RAID 5 (310TB usable storage)
Option:RAID 6*		 240TB RAID 5 (230TB usable storage)
Option:RAID 6*		 160TB RAID 5 (150TB usable storge)
Option:RAID 6*		 120TB RAID 5 (110TB usable storage)
Option:RAID 6*		 70TB RAID 5 (60TB usable storage) 70TB 30TB 20TB 18TB 16TB 20TB
Option: DW-HSD6TB - 6TB hot spare drive* Option: DW-HSD4TB -4TB hot spare drive*
Video-Out Outputs 4x HD display port outputs, simultaneous monitors True HD output or VGA or DVI 4x mini display port DVI-D or True HD output True HD output, DVI or D-Sub port N/A
Video Card AMD FinePro W4100 GeForce 210 512MB Onboard Intel HD Graphics N/A
4x Mini display port to true HD adapters (included) Option: DW-RV4H - 4 head HD video card* N/A
Resolution HD 1080p N/A
Pre-Loaded VMS Software DW Spectrum® IPVMS DW Spectrum® IPVMS Server
Remote Clients Cross platform - Windows®, Linux Ubuntu® and Mac®
Mobile Apps iOS®and Andriod® Cross Platform - Windows®, LinuxUbuntu®and Mac® iOS® and Andriod®
Keyboard & Mouse Included N/A
Rail Kit Included N/A
Power supply Dual 1280W**, redundant power supply Dual 920W**, redundant power supply 400W** 300W** 200W 36W
Operating Temperature and Humidity 41°F~104°F (5°C~40°C)
Operating Humidity 20~90% RH
Dimension (WxDxH) 17.2" x 25.5" x 7" (436.8 x 647.7 x 177.8 mm) 17.2" x 25.5" x 7" (436.8 x 647.7 x 177.8 mm) 17.2" x 25.5" x 5.25" (436.8 x 647.7 x 133.35 mm) 17.2" x 25.5" x 3.5" (436.8 x 647.7 x 88.9 mm) 17.32" x 26" x 19" (439.9 x 660.4 x 482.6 mm)
 17.32" x 26" x 3.5" (439.9 x 660.4 x 88.9 mm) 17.25” x 26.5” x 1.75” (438.15 x 673.1 x 44.45 mm) 12.8” x 8.5” x 7.5” (325.1 x 215.9 x 190.5 mm) Standing: 3-7/8” x 14” x 10-3/8” (98.4 x 355.6 x 263.525 mm)
Desktop: 10-3/8” x 14” x 3-7/8” (263.525 x 355.6 x 98.4 mm)		 10.2" x 11.02" x 2.1" (258 x 280 x 53mm)
Field Repair Kit N/A DW-FRK4U DW-FRK3U DW-FRK2U N/A
Warranty 5 Year Limited
* Available at time of initial order only / ** UPS Recommended
Expand
NVR Features:
  • Supports all ONVIF conformant IP cameras
  • storage options 2-204TB internal storage
  • Hot spare HDDs*
  • Data redundancy*
  • Redundant power supply*
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 128 2.1MP cameras at 30fps and a maximum of 600Mbps throughput
  • Support for up to four (4) cameras MEGApix® PANO™ 48 megapixel multi-sensor cameras (DWC-PZV2M72T)
  • Dual network ports
  • Windows 10® 64 bit or Linux® Ubuntu® 14.04 OS options
  • USB interface
  • SD card interface
  • One-time recording license charge, fully transferable between cameras and encoders
  • Up to two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • OS recovery on USB
  • Rail kit included*
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • 5 years limited warranty
* On supported models


Blackjack® Client High-Performance Workstation
The Blackjack® Client workstation is a high performance multi-monitor workstation powered by DW Spectrum® IPVMS. It provides the ultimate solution for viewing and monitoring multipe multi-sensor MEGApix® PANO™ 48 megapixel cameras (DWC-PZV2M72T) from a single location, reducing processor demand on the DW Spectrum® IPVMS server computer. The Client workstation includes true HD and DisplayPort® ports with up to 4 simultaneous monitor outputs, Windows® OS and dual network card. The Client workstation is ONVIF conformant and includes a 5 year limited warranty.

View Product

Product images:
DESCRIPTION Blackjack CLIENT
PART NUMBER Windows model DW-BJCLIENT 1 DW-BJCLIENT 2
Linux Ubuntu model
Maximum IP Cameras 1 4
Included IP Licenses N/A
Form Factor Desktop / Cube
Operating System Windows® 10 64 Bit DW-BJCLIENT 1 DW-BJCLIENT 2
Linux® Ubuntu® N/A
Embedded Linux® N/A
OS on SSD N/A
CPU Intel i5® processor Intel® i7® Processor
Memory 16GB
Ethernet port 2x gigabit ethernet port (RJ45)
System Max Video Storage Rate (Mbps) N/A
Storage Maximum Hard Drives N/A
Maximum Storage N/A
Video-Out Outputs DVI-D or True HD output
Video Card nVidia GTX 950 nVidia GTX 1080
Resolution HD 1080p
Pre-Loaded VMS Software DW Spectrum® IPVMS Client
Remote Clients N/A
Mobile Apps N/A
Keyboard & Mouse Included
Rail Kit N/A
Power supply 300W (270W) 500W (420W)
Operating Temperature and Humidity 41°F~104°F (5°C~40°C)
Operating Humidity 20~90% RH
Dimension (WxDxH) 12.8” x 8.5” x 7.5” (325.1 x 215.9 x 190.5 mm) 12.8” x 8.5” x 7.5” (325.1 x 215.9 x 190.5 mm)
Field Repair Kit N/A
Warranty 5 Year Limited
* Available at time of initial order only / ** UPS Recommended
Expand

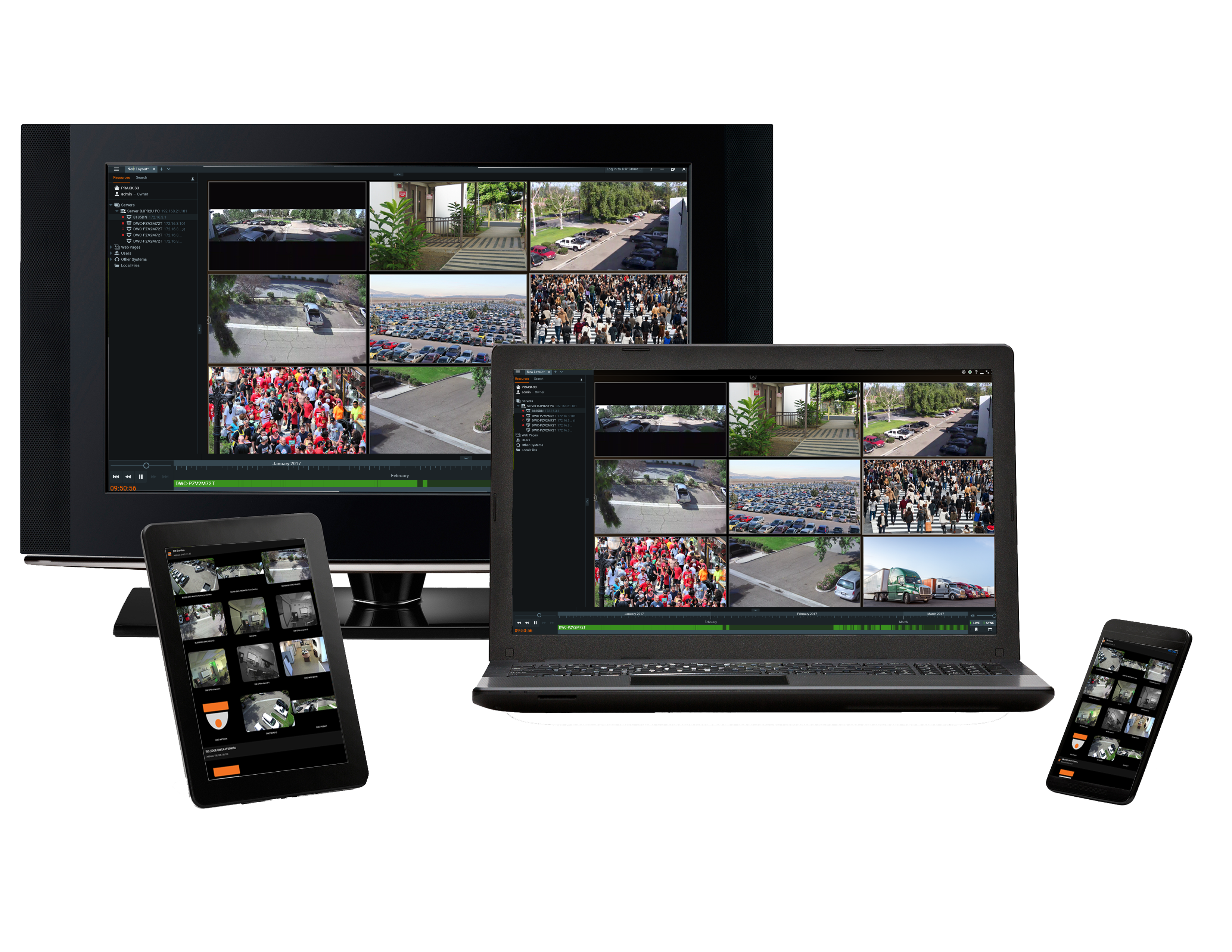

DW Spectrum® IPVMS is an elegantly easy cutting-edge approach to video surveillance, addressing the primary limitations of managing enterprise-level HD video while offering the lowest total cost of deployment and ownership on the market. DW Spectrum® IPVMS now includes DW® Cloud™ to easily manage all your systems and users from a simple webpage.

DW Spectrum® IPVMS is a perfect solution for applications that require ease of use, speed, efficiency and unprecedented image quality.
