Home Recorders DW-BJAiPxxTR

DW-BJAiPxxTR

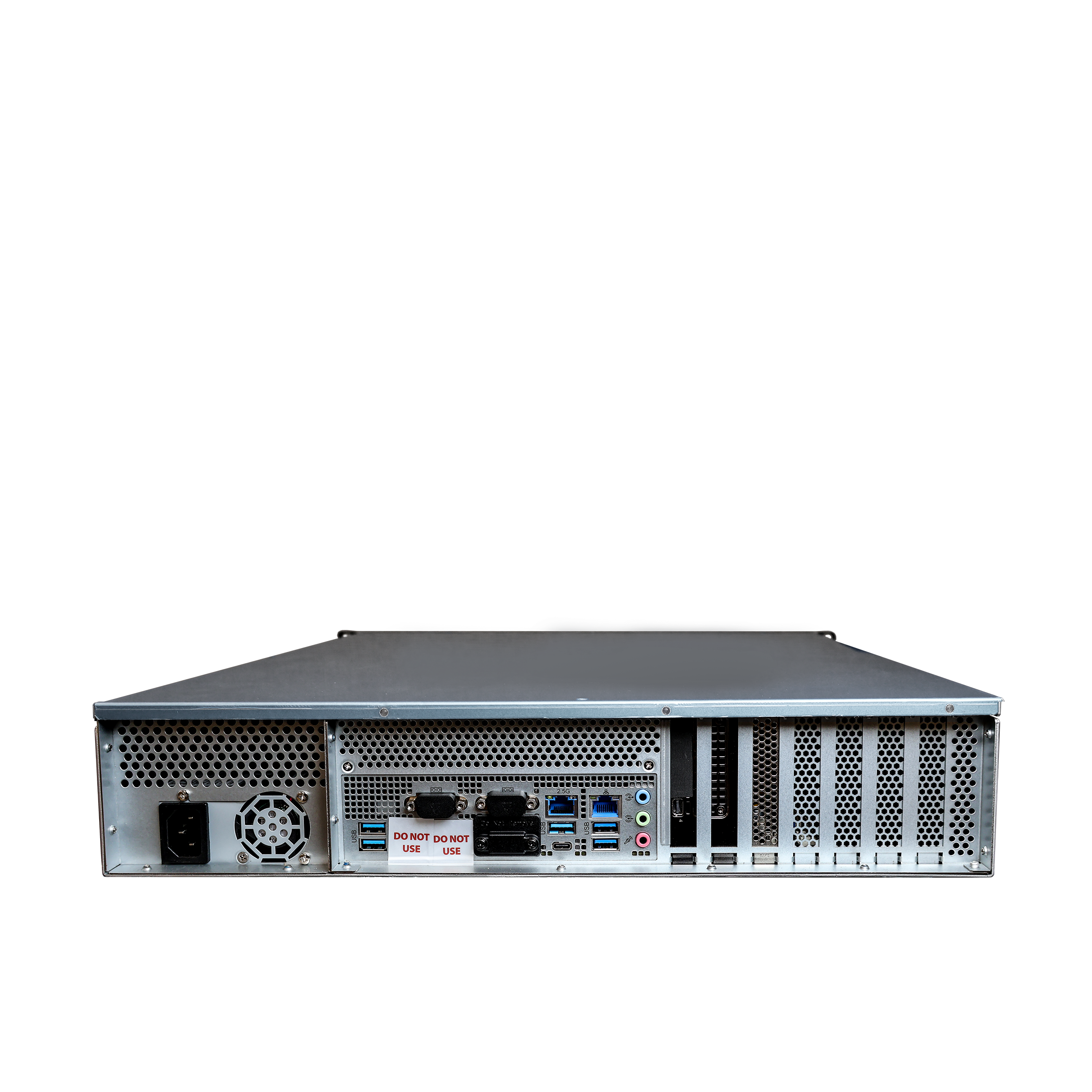

Blackjack Ai 2U rackmount server powered by DW Spectrum IPVMS and IVA
Find a Reseller Request a Demo Contact Us FAQs
NDAA TAA
Features
  • Hosting Intelligent Video Analytics (IVA) Ai software deep learning and color filter
  • Server-side analytics for non-analytic cameras
  • Deep learning classifiers and logical rules engine
  • A single device for NVR and Analytics server for lower deployment cost
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Up to 64 analytic streams
  • Supports all ONVIF conformant IP cameras
  • 64-96TB raw internal storage with RAID5
  • 12th Gen Intel® Core™ i7 processor
  • True HD and Display Port local outputs for system configuration
  • Dual network ports
  • Windows 10® on SSD
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel recording license included (DW-SPECTRUMLSC004)
  • One (1) 4-channel IVA Ai license included (DW-IVAAiSERVERLSC004)
  • No annual maintenance fees
    • Show More

Server-Side Analytics for Non-Analytic Cameras

Bring classified object detection to your existing non-analytic cameras.

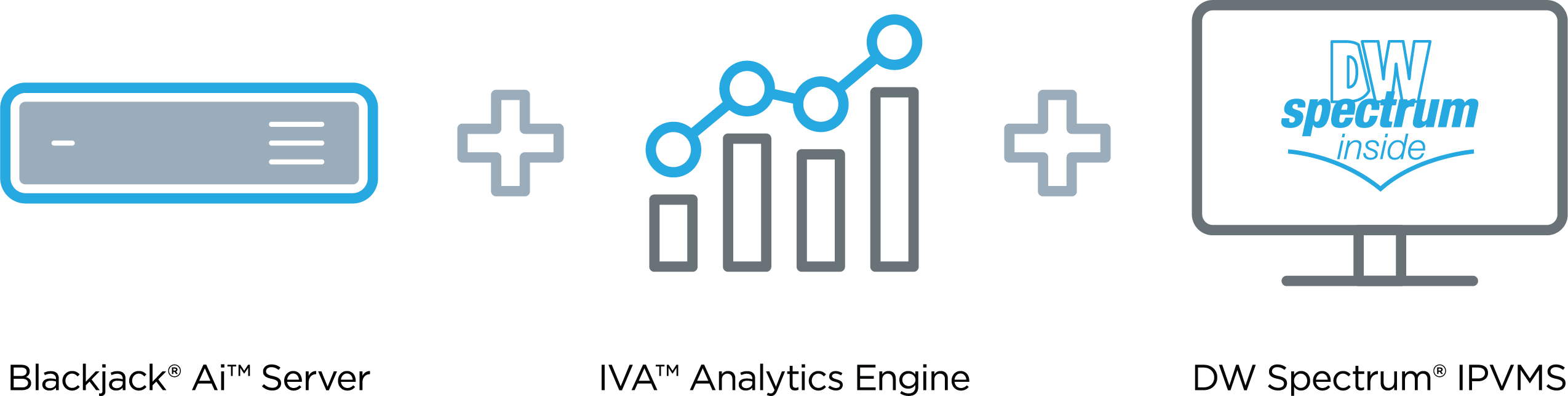

All-in-One Device

Achieve lower deployment cost with a single device that performs as an NVR and an analytics server.

High Performance

Achieve high total throughput, while simultaneously running analytics.

Remote Notifications on Mobile

Receive an instant notification to any mobile device.

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Specifications

Video
Display Modes Unlimited, Sequence, Customizable
Local Video Outputs True HD, 1 display output at a time, 3 DisplayPorts, For initial configuration and server management
Max video storage rate (Mbps) 600Mbps
Memory 32GB
Video Card NVIDIA RTX A2000 12GB
Video Compression H.264, H.265
Video Operating System Windows®10
OS on SSD 480GB SSD
Storage
Raw internal storage options 64TB  80TB  96TB
Max HDD Bay 6 x SATA HDD
Maximum Storage 96TB (80TB usable storage)
RAID Options RAID5
Performance
Performance features Server-side analytics for non-analytic cameras, Deep learning classifiers and logical rules engine, A single device for NVR and Analytics server for lower deployment cost
Playback Functions Timeline, Calendar, Event search, Thumbnail search, Smart motion search
PTZ control ONVIF
Recording Modes Continuous, Motion detection, Motion + low res always, Object only, Object + Low res, Motion + Object, Motion + Object + Low res
System Operation Graphical user interface (GUI), USB mouse (included), Remote via DW Spectrum IPVMS
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Network Remote Software DW Site Viewer for Apple TV, DW Spectrum Mobile App, Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Mobile Plus
Pre-loaded VMS software DW Spectrum® IPVMS, DW IVA Ai server
Electrical
Power Consumption 500W, A UPS is recommended
General
Accessories Keyboard, Mouse
Certification NDAA Compliance, ONVIF Conformant, TAA Compliance
Form Factor Rack mount
Included IP licenses 4
Operating Temperature and Humidity 41 ~ 104 °F (5~40 °C), 20 ~ 90% RH
Rail kit Included
Recorder Dimensions (H X W X D) 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm)
Recording Licenses (Optional. Sold Separately) DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Custom-ordered licenses are available by request.
Lifetime upgrades are included with no annual renewal fees.
Serial ports ONVIF
USB interface Yes
Warranty 5 Year Limited Warranty

Part Numbers

Model #*

Usable Storage Size**

Open Drive Bays

DW-BJAiP64TR
46TB (RAID5)
 2
DW-BJAiP80TR
64TB (RAID5)
 1
DW-BJAiP96TR
80TB (RAID5)
 --

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC050
Fifty (50) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100) W Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16, No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall license - 1 Operator, 2 Monitors, No Annual Renewal, No Upgrade Required.

IVA Ai Server License

Part Number

Description

DW-IVAAiSLSC001
Single DW IVA Ai Server Analytic License
DW-IVAAiSLSC004
Four (4) DW IVA Ai Server Analytic Licenses
DW-IVAAiSLSC010
Ten (10) DW IVA Ai Server Analytic Licenses
DW-IVAAiSLSC020
Twenty (20) DW IVA Ai Server Analytic Licenses

Additional Hardware Options (Available at time of initial order only):

Part Number

Description

DW-BJRR32GB
32GB Ram Upgrade for Blackjack RACK.
DW-BJRR4NICLow Profile Quad Port 1GbE RJ45 for Blackjack RACK.
DW-BJRR10GBNLow Profile Dual Port 10Gb SFP+ NIC for Blackjack RACK.

Documents

Title Type
Blackjack Ai Brochure
pdf Download
DW-BJAiPxTR A&E specifications
doc Download
DW-BJAiPxxTR datasheet
pdf Download
DW-BJAiPxxTR datasheet - French
pdf Download
DW-BJAiPxxTR datasheet - Spanish
pdf Download
IVA Ai Server User Manual
pdf Download
View All Documents
