Home Recorders DW-BJTR715xxT, DW-BJTR716xxT

DW-BJTR715xxT
DW-BJTR716xxT

Blackjack Tower full-size servers, Intel Core i7 processor, RAID5/6 options
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Supports all ONVIF conformant IP cameras
  • Up to 140TB raw internal storage
  • Hot-swappable HDDs
  • OS on SSD
  • RAID5, RAID6 options
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput (max 420Mbps with RAID6)
  • Hosting DW Spectrum for setup, configuration and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel license included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual-stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • UL Listed
  • NDAA/TAA compliant
    • Show More

Learn about how DW
solutions can work for you

View All Markets

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.

Hot-swappable HDDs

When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system’s drives healthy and operating.

Storage mirroring RAID 5

Add extra security to your video surveillance system by protecting recorded data and overcoming data loss in the case of a hard drive failure.

OS on dedicated SSD

DW’s servers provide a dedicated SSD for the OS. This results in faster boot time, faster application loading times and improved system responsiveness.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

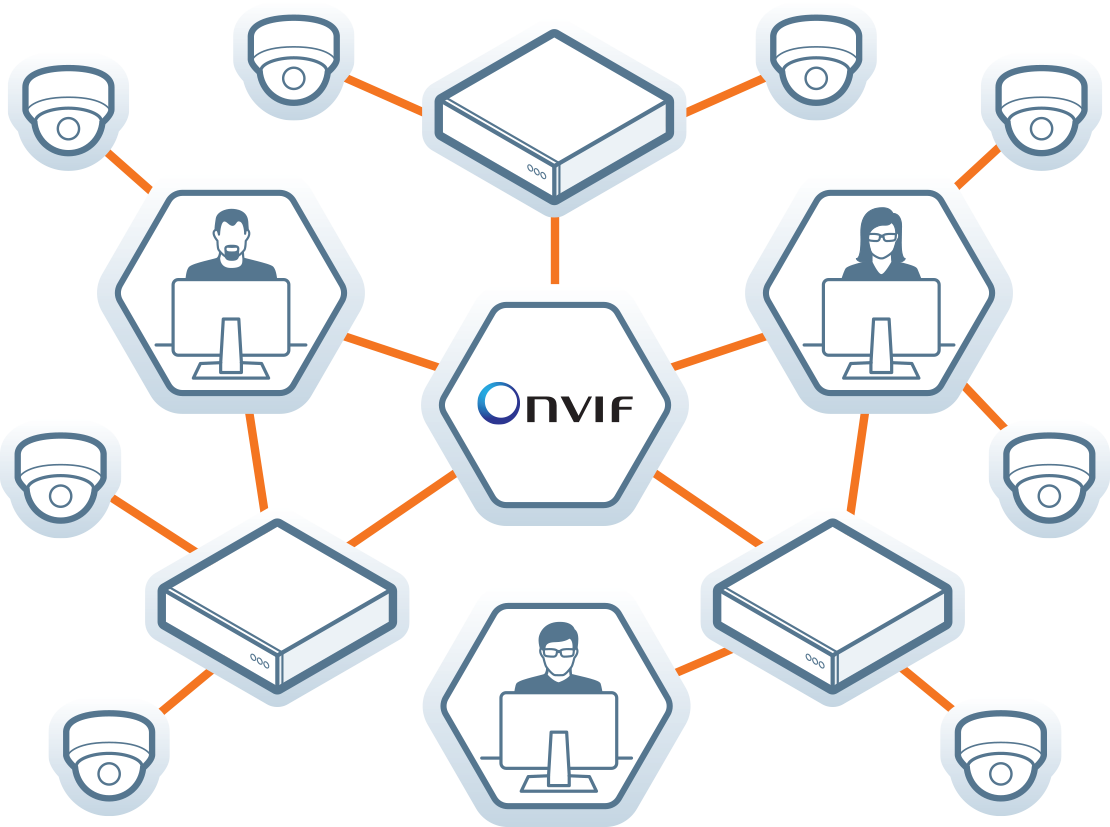

ONVIF® Conformant

DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Video
CPU Intel i7® processor
Display Modes Unlimited
Customizable
Sequence
Display Speed Up to 30fps per channel
Local Video Output Resolution HD 1080p
Local Video Outputs For initial configuration and server management
1 DisplayPort
DVI
True HD
1 display output at a time
Memory 16GB
Video Card On-board Intel Graphics
Video Compression H.264
H.265
Video Operating System Linux Ubuntu 22.04 LTS (DW-BJTR715112TLX, DW-BJTR71540TLX, DW-BJTR71550TLX, DW-BJTR71560TLX, DW-BJTR71564TLX, DW-BJTR71570TLX, DW-BJTR71580TLX, DW-BJTR71596TLX, DW-BJTR716112TLX, DW-BJTR71650TLX, DW-BJTR71660TLX, DW-BJTR71670TLX, DW-BJTR71680TLX, DW-BJTR71696TLX)
Linux Ubuntu Desktop 20.04 OS (DW-BJTR715100TLX, DW-BJTR715120TLX, DW-BJTR715140TLX, DW-BJTR716100TLX, DW-BJTR716120TLX, DW-BJTR716140TLX)
Windows Server® 2019 Standard (DW-BJTR715100TS, DW-BJTR715120TS, DW-BJTR715140TS, DW-BJTR716100TS, DW-BJTR716120TS, DW-BJTR716140TS)
Windows® 10 IoT Enterprise LTSC (DW-BJTR715100T, DW-BJTR715120T, DW-BJTR715140T, DW-BJTR716100T, DW-BJTR716120T, DW-BJTR716140T)
OS on SSD 240GB SSD
Max throughput (Mbps) RAID5: 600Mbps
RAID6: 420Mbps
Storage
Raw internal storage options 040TB  050TB  060TB  064TB  070TB  080TB  096TB  100TB  112TB  120TB  140TB
RAID Options RAID5 (DW-BJTR715100T, DW-BJTR715120T, DW-BJTR715140T, DW-BJTR715100TLX, DW-BJTR715120TLX, DW-BJTR715140TLX, DW-BJTR715100TS, DW-BJTR715120TS, DW-BJTR715140TS)
RAID6 (DW-BJTR716100T, DW-BJTR716120T, DW-BJTR716140T, DW-BJTR716100TLX, DW-BJTR716120TLX, DW-BJTR716140TLX, DW-BJTR716100TS, DW-BJTR716120TS, DW-BJTR716140TS)
Max HDD Bay 7 x SATA HDD
Maximum Storage 70TB RAID 5 (60TB usable storage)
70TB RAID 6 (50TB usable storage)
100TB (60TB, RAID6) (DW-BJTR716100T, DW-BJTR716100TLX, DW-BJTR716100TS)
100TB (80TB, RAID5) (DW-BJTR715100T, DW-BJTR715100TLX, DW-BJTR715100TS)
120TB (80TB, RAID6) (DW-BJTR716120T, DW-BJTR716120TLX, DW-BJTR716120TS)
120TB (100TB, RAID5) (DW-BJTR715120T, DW-BJTR715120TLX, DW-BJTR715120TS)
140TB (100TB, RAID6) (DW-BJTR716140T, DW-BJTR716140TLX, DW-BJTR716140TS)
140TB
140TB (120TB, RAID5) (DW-BJTR715140T, DW-BJTR715140TLX, DW-BJTR715140TS)
Performance
Playback Functions Calendar
Event search
Smart motion search
Thumbnail search
Timeline
PTZ control ONVIF
Recording Modes Continuous
Motion + low res always
Motion + Object
Motion + Object + Low res
Motion detection
Object + Low res
Object only
System Operation Graphical user interface (GUI)
Remote via DW Spectrum
USB mouse (included)
Network
Backup Network backup via DW Spectrum
Ethernet Ports 2x 1G Ethernet (RJ45)
Pre-loaded VMS software DW Spectrum®
Network Remote Software Cross-platform - Windows®, Linux Ubuntu® and Mac®
DW Mobile Plus
DW Spectrum Mobile App
Electrical
Power Consumption 500W
A UPS is recommended
General
Accessories Keyboard
Mouse
Included IP licenses 4 (DW-SPECTRUMLSC004)
Operating Temperature and Humidity 20 ~ 90% RH
41 ~ 104 °F (5~40 °C)
Recorder Dimensions (H X W X D) 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm)
Recording Licenses (Optional. Sold Separately) Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall License
Lifetime upgrades are included with no annual renewal fees.
USB interface Yes
Weight (barebone, HDD not included) 19.7 lbs (8.93 kg)
Certification CE  FCC  NDAA  ONVIF Conformant  TAA Compliance  UL Listed
Form Factor Full-size Tower

Part Numbers

Part Number

Usable Storage Size

Open Drive Bays

DW-BJTR71580T, DW-BJTR71580TLX, DW-BJTR71580TS 80TB raw storage, 60TB usable storage, RAID5 3
DW-BJTR715100T, DW-BJTR715100TLX, DW-BJTR715100TS 100TB raw storage, 80TB usable storage, RAID5 2
DW-BJTR715120T, DW-BJTR715120TLX, DW-BJTR715120TS 120TB raw storage, 100TB usable storage, RAID5 1
DW-BJTR715140T, DW-BJTR715140TLX, DW-BJTR715140TS 140TB raw storage, 120TB usable storage, RAID5 ---
DW-BJTR716100T, DW-BJTR716100TLX, DW-BJTR716100TS 100TB raw storage, 60TB usable storage, RAID6 2
DW-BJTR716120T, DW-BJTR716120TLX, DW-BJTR716120TS 120TB raw storage, 80TB usable storage, RAID6 1
DW-BJTR716140T, DW-BJTR716140TLX, DW-BJTR716140TS 140TB raw storage, 100TB usable storage, RAID6 ---

* LX at the end of the part number represents Linux OS models.
* S at the end of the part number represents Windows Server OS models.
** RAID5 Configuration reduces raw storage size by the equivalent of one (1) HDD size.
** RAID6 Configuration reduces raw storage size by the equivalent of two (2) HDDs size.

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20)  DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50)  DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100)  DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum License - allows up to 4-channel or recording when used with DW-ENC4K16,  No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC016
Single DW Spectrum License - allows up to 16-channel or recording when used with DW-ENC4K16,  No Annual Renewal, No Upgrade Required.
DW-SPIOLSC001 IP I/O Module License - Supported devices IP I/O Modules are automatically discovered and can be used to trigger system events, actions, and alerts.
DW-SPVWALL1X2Single DW Spectrum Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.
