DW-SWSP15

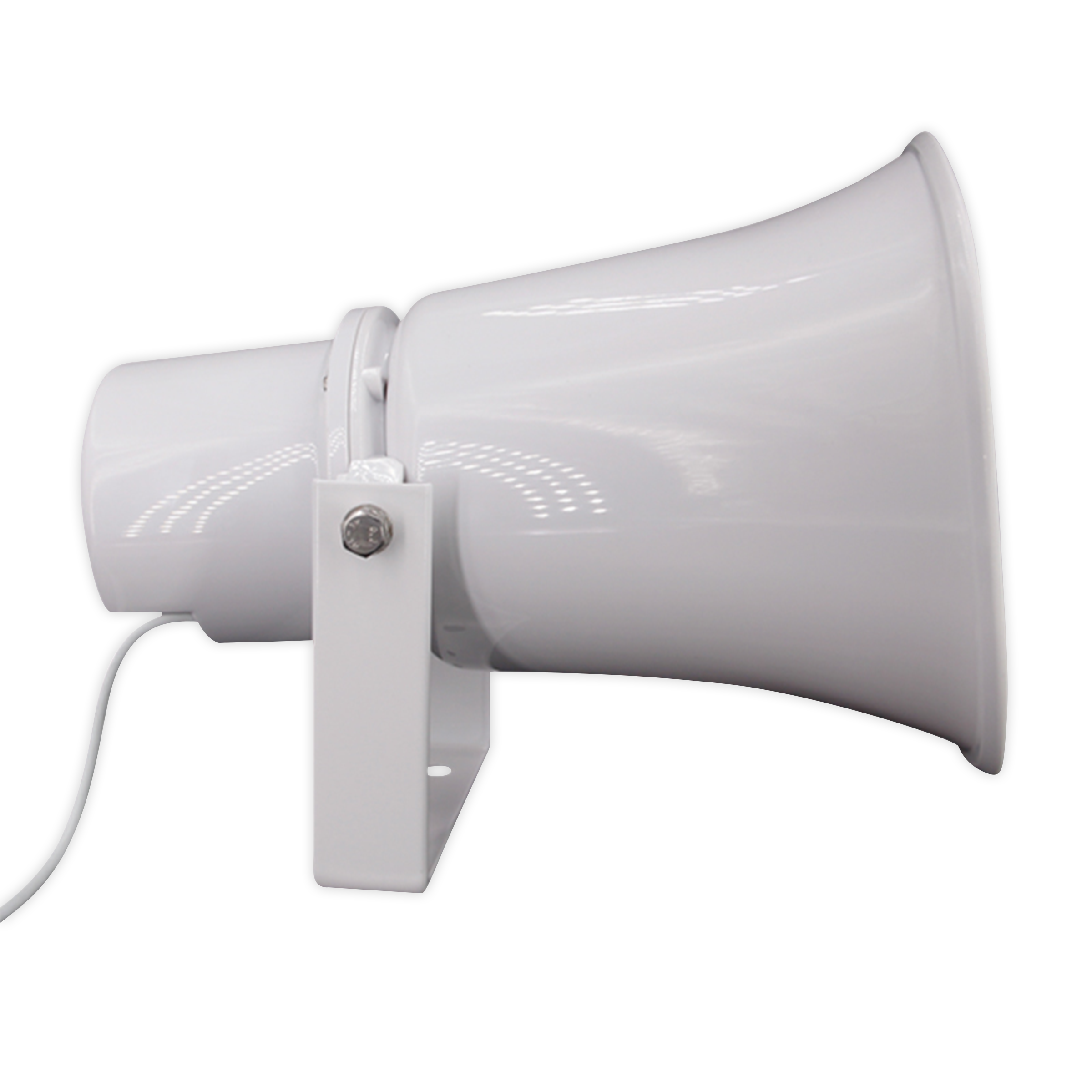

Smart audio IP horn speaker
Find a Reseller Request a Demo Contact Us FAQs
Features
  • All-in-one IP speaker system
  • Compatible with IP cameras via DW Spectrum IPVMS
  • Compatible with VoIP devices (IPPBX, IP Phone) via SIP
  • Support pre-recorded messages, live responses, alarms and background music
  • Schedule audio alerts
  • Support HTTP API for alarm-in transmit
  • Web server built-in
  • ONVIF conformant
  • PoE Class 3 and DC12V-24V
  • Wall mount bracket included
  • IP67 dust-tight and waterproof to 3 feet
  • 2 year warranty

Learn about how DW
solutions can work for you

View All Markets

Audio for safety

Use pre-recorded and live messages as part of your warning and crucial safety system in emergencies. The horn speaker can deliver up-to-the-minute information and guide the public and your workforce in emergencies.

Audio for deterrence

Combine DW’s horn speaker with video and alarm systems to create deterrence and prevent crime or damage to your property. Audio adds value to your security system with real-time responses to suspicious behavior at the scene.

Audio for operations

The horn speaker is a cost-effective solution for delivering non-emergency messages to public areas, supporting and helping streamline your operations and offering public addresses, guidelines and announcements.

Specifications

Audio
Codec G.711 PCMA 8 kHz, G.711 PCMU 8 kHz, G.722 ADPCM 16 kHz, MP3 44.1 kHz, OPUS 48 kHz
Mounting Accessories
Operating PoE or 12-24V
Rate power 15W
Material ABS
Color White
Working Temperatures -22°F ~ 140°F (-30°C ~ 60°C)
Working humidity 5%~85%
Mounting options Fully adjustable (left, right, up & down), Wall, Indoor, Outdoor
Warranty 2 year warranty
Included accessories Mounting screws, QSG, Wall mount screws
Accessory Weight 2.86 lbs (1.3 kg)
Speaker
Amplifier Built-in 15W amplifier
Frequency range 400-12KHZ +-20dB, 500-2KHZ +-10dB
Frequency response 300Hz~8KHz
Harminoc distortion 0.1@1kHz
Max SPL 113dB
Signal to noise ratio 91dB
Network
Network interface 10/100 Base-TX, RJ54
Network Protocols ARP, DHCP, FTP, HTTP, IPv4, NFS, NTP, ONVIF, RTCP, RTP, RTSP, SIP, TCP, TFTP, UDP
Security Digest authentication, Firewall, IP address filtering, Password protection, User access log
VoIP 2 SIP accounts, SIP direct IP call, RTP multicast, Support for SIP protocol for integration with VoIP systems, integrated with SIP/PBX

Documents

Title Type
DW-SWSP15 CAD drawing
dwg Download
DW-SWSP15 datasheet
pdf Download
DW-SWSP15 quick setup guide
pdf Download
DW-SWSP15 user manual
pdf Download
SiteWatch Perimeter Protection Brochure
pdf Download
View All Documents

Software

Title Type Release Notes Version Update Date Compatibility Size
DW IP Finder v4.4.20-1 for Linux OS run v4.4.20-1 08/01/2023 45.98 MB Download
DW IP Finder v4.4.20-1 for Windows OS exe v4.4.20-1 08/01/2023 27.74 MB Download
DW-SWSP15 Firmware v3.3.10 bin - v3.3.10 05/17/2023 3.61 MB Download
View All Software
