Home Recorders DW-VP16xT16P

DW-VP16xT16P

VMAX IP Plus 16-channel NVR
Find a Reseller Request a Demo Contact Us FAQs



Features
  • Complete installation, set up and camera configuration in under three minutes!
  • CCIP™ system encryption protects your surveillance system from out of network attacks
  • Record and manage single-sensor IP cameras up to 4K (3840×2160), with 160Mbps maximum throughput
  • Local power for up to 16 IP cameras via resident PoE switch
  • DW Witness™ turns a smartphone or tablet into an additional surveillance camera
  • PathFinder™ Peer-to-Peer (P2P) remote connection
  • HTTPS encryption supported
  • Automatic device discovery
  • Control any ONVIF camera’s set up and features remotely
  • 0TB-32TB storage options
  • Snapshot Notify™: camera notifications sent to an email or CMS
  • C3™ CMS and event server software up to 144 Channels
  • Event notifications via email, text and C3™ CMS and push notifications to mobile devices
  • Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
  • Dual-stream recording
  • Easy drag and drop camera management
  • Instant backup during playback
    • Show More

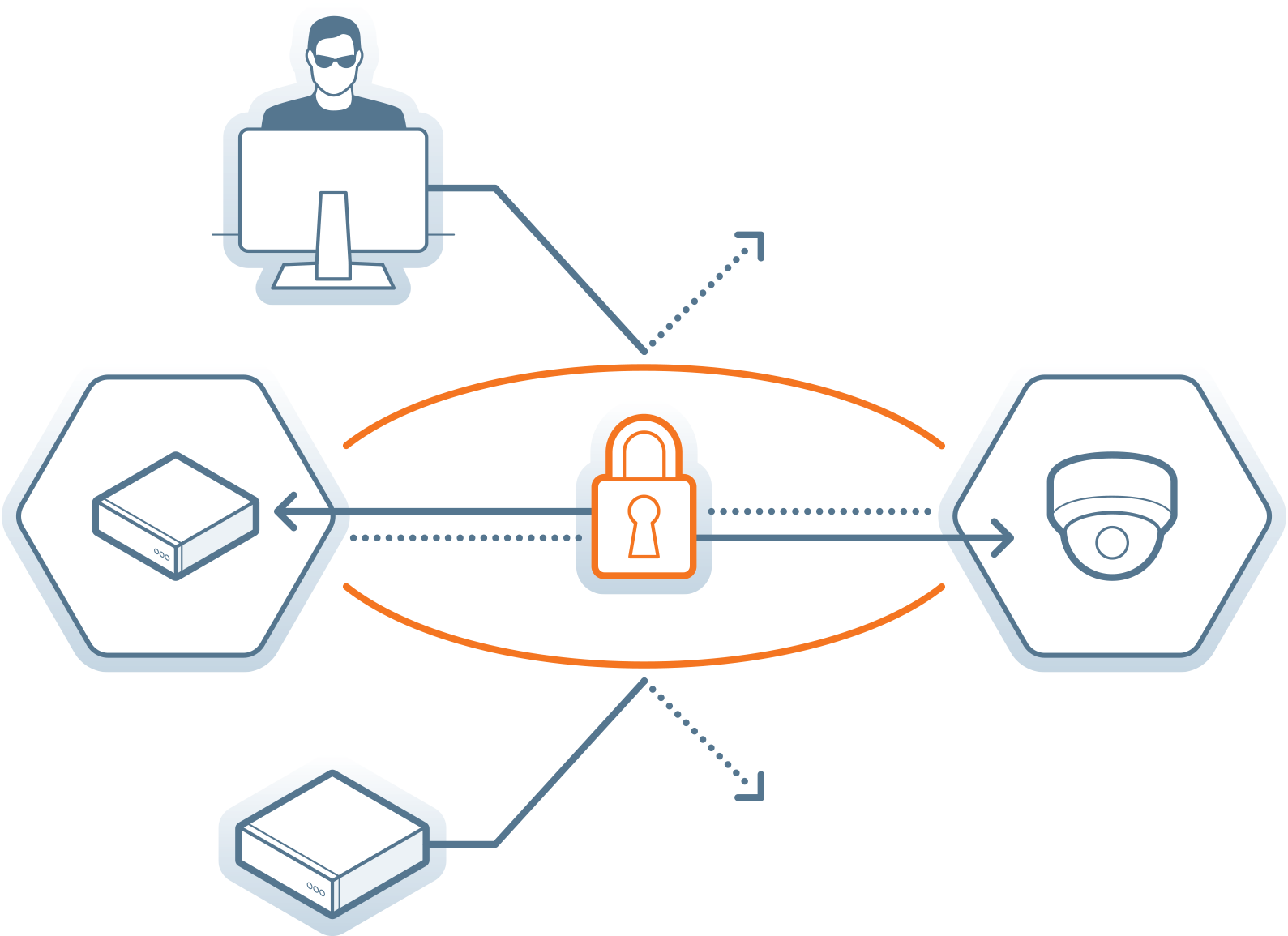

CCIP™ System Encryption

Camera streams are protected when a user ID and password are used with an NVR. The additional CCIP™ (Closed Circuit IP) encryption is activated when the VMAX IP Plus™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting VMAX IP Plus™ NVR.
See all compliant cameras.

3-minute installation

The entire system can be set up and configured in less than four minutes from power-up. Using the user-friendly startup wizard, configure the NVR’s main functions, locate and register all your cameras and set them to record in less than four minutes and with no need for a technical background!

C3™ CMS

C3™ CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.

PathFinder™

Easy and secure peer-to-peer remote connection without opening ports.
Learn More.

Push notifications via myDW App

DW’s recorders can send an event notification to your mobile device via the myDW app.

Specifications

Video
Display Modes 1, 4, 9, 16, Sequence
Display Speed Up to 30fps per channel
Input channels 16 Channels
Local Video Output Resolution 1024x768, 1280x720, 1280x1024, 1920x1080, 2560x1600, 3840×2160 (4K)
Local Video Outputs True HD, VGA
Max Supported Recording Resolution 4K (3840×2160)
Max video storage rate (Mbps) 160Mbps
PoE Type 100Mbps, 802.3at
Video Compression H.264, H.265
Video Operating System Embedded Linux®
Storage
Raw internal storage options 3TB  4TB  6TB  9TB  12TB  16TB  18TB  24TB  32TB  No Local Storage
Max HDD Bay 4 x SATA HDD
Maximum Storage 32TB
Performance
Performance features PoE built-in, CCIP, Quick Setup under 3 Minutes, Snapshot Notify™: Programmable interval camera image verification sent to an email, Real-time temp alert, Digital Zoom in live and playback, Import and export settings, Covert Channel, Camera Color Control, Watermak exported video, AVI file backup
Playback Functions Timeline, Calendar, Event search, Thumbnail search, Smart motion search
Playback speed x1, x2, x4, x8, x16, x32, x64, x99
Post-recording 0~5 minutes
Pre- recording 0~5 seconds
PTZ control RS485, ONVIF
Recording Modes Continuous, Scheduled, Sensor, Motion detection, Pre- and post-alarm, Emergency, Quick backup
Recording Resolution and Recording Rate Up to 3840×2160 (4K): 270fps, Up to 3840×2160 (4K): 360fps, Up to 3840×2160 (4K): 480fps
System Operation Remote Control (optional), Graphical user interface (GUI), USB mouse (included), Joystick Controller (optional)
Network
Backup Local backup via USB, Network backup via CMS
Ethernet Ports 1x 1G Ethernet (RJ45)
Firmware Upgrade FTP, USB, CMS over network
Network Remote Software Pivot CMS, DW VMAX App, DW Witness, DW Site Viewer for Apple TV, ACS VMAX Client for MAC, DW VMAX Plus App, C3 CMS, DW Mobile Plus
Protocol Static fixed IP, DDNS, DHCP, uPNP, RTSP
System recovery after power failure Auto-reboot and journaling file system
Transation verification Text-in Based (USB to Serial support, TCP/IP Network)
Transmission speed live Up to 3840×2160 (4K): 480fps
Electrical
Power Consumption 300W total power budget, 5.5A, 9.37W per PoE channel, simultaneous, A UPS is recommended
Power Requirements 110~240V A/C
General
Accessories Mouse, IR remote control (optional)
Alarm in/out 16 inputs, 4 outputs
Audio in/out 1 input, 1 output
Certification ONVIF Conformant, UL Listed  TAA Compliance
Certification (Product Specification) FCC, RohS, KCC, WEEE
Form Factor Embedded
Maximum Power per Port 30W
Operating Temperature and Humidity 41 ~ 104 °F (5~40 °C), 20 ~ 90% RH
Rail kit DW-VP16RE - 19" rackmount ears
Recorder Dimensions (H X W X D) 17.32” x 15.66” x 2.79” (440 × 397.8 ×71 mm)
Serial ports RS485, ONVIF
Total PoE Power Budget 150W
USB interface Yes
Warranty 5 Year Limited Warranty

Part Numbers

Model #

Supported Cameras

Storage Size

DW-VP1616PUp to 16 IP camerasNo local storage
DW-VP163T16P
Up to 16 IP cameras
3TB
DW-VP164T16P
Up to 16 IP cameras
4TB
DW-VP166T16P
Up to 16 IP cameras
6TB
DW-VP169T16P
Up to 16 IP cameras
9TB
DW-VP1612T16PUp to 16 IP cameras12TB
DW-VP1616T16PUp to 16 IP cameras16TB
DW-VP1618T16PUp to 16 IP cameras18TB
DW-VP1624T16PUp to 16 IP cameras24TB
DW-VP1632T16PUp to 16 IP cameras32TB

Accessories

DW-VPR19E
19in rack mount ears
Learn more
DW-VP16RE
19in rack mount ears
Learn more
DWSP-VACREMOTE
Remote control for VMAX recorders
Learn more
DW-KB100
System Control Keyboard
Learn more

Videos

VMAX IP Plus Initial Startup
VMAX IP Plus System Information
VMAX IP Plus User Management
VMAX IP Plus Formatting HDD
VMAX IP Plus Camera Management
VMAX IP Plus Recording Schedule
VMAX IP Plus Network and DDNS
VMAX IP Plus Email Notification
May 14, 2020 Customer Webinar Recording: VMAX® A1 Plus™ DVR and VMAX® IP Plus™ NVR Pro Tips and Tricks
June 18, 2020 Customer Webinar Recording: VMAX® IP Plus™ NVR System Design with C3™ CMS
Snapshot Notify™ Interval Emails from VMAX® Plus™ Recorders

Videos

VMAX IP Plus Initial Startup
VMAX IP Plus System Information
VMAX IP Plus User Management
VMAX IP Plus Formatting HDD
VMAX IP Plus Camera Management
VMAX IP Plus Recording Schedule
VMAX IP Plus Network and DDNS
VMAX IP Plus Email Notification
May 14, 2020 Customer Webinar Recording: VMAX® A1 Plus™ DVR and VMAX® IP Plus™ NVR Pro Tips and Tricks
June 18, 2020 Customer Webinar Recording: VMAX® IP Plus™ NVR System Design with C3™ CMS
Snapshot Notify™ Interval Emails from VMAX® Plus™ Recorders

Documents

Title Type
3rd Gen VMAX IP Plus 16-channel 16-PoE datasheet
pdf Download
DW Accessories Chart
pdf Download
DW-VP16xT16P AE specifications
doc Download
DW-VP16xT16P CAD drawings
dwg Download
VMAX IP Plus brochure
pdf Download
VMAX IP Plus Quick setup guide
pdf Download
VMAX IP Plus user manual
pdf Download
