DW-BJP2U
DW-BJP2U-LX

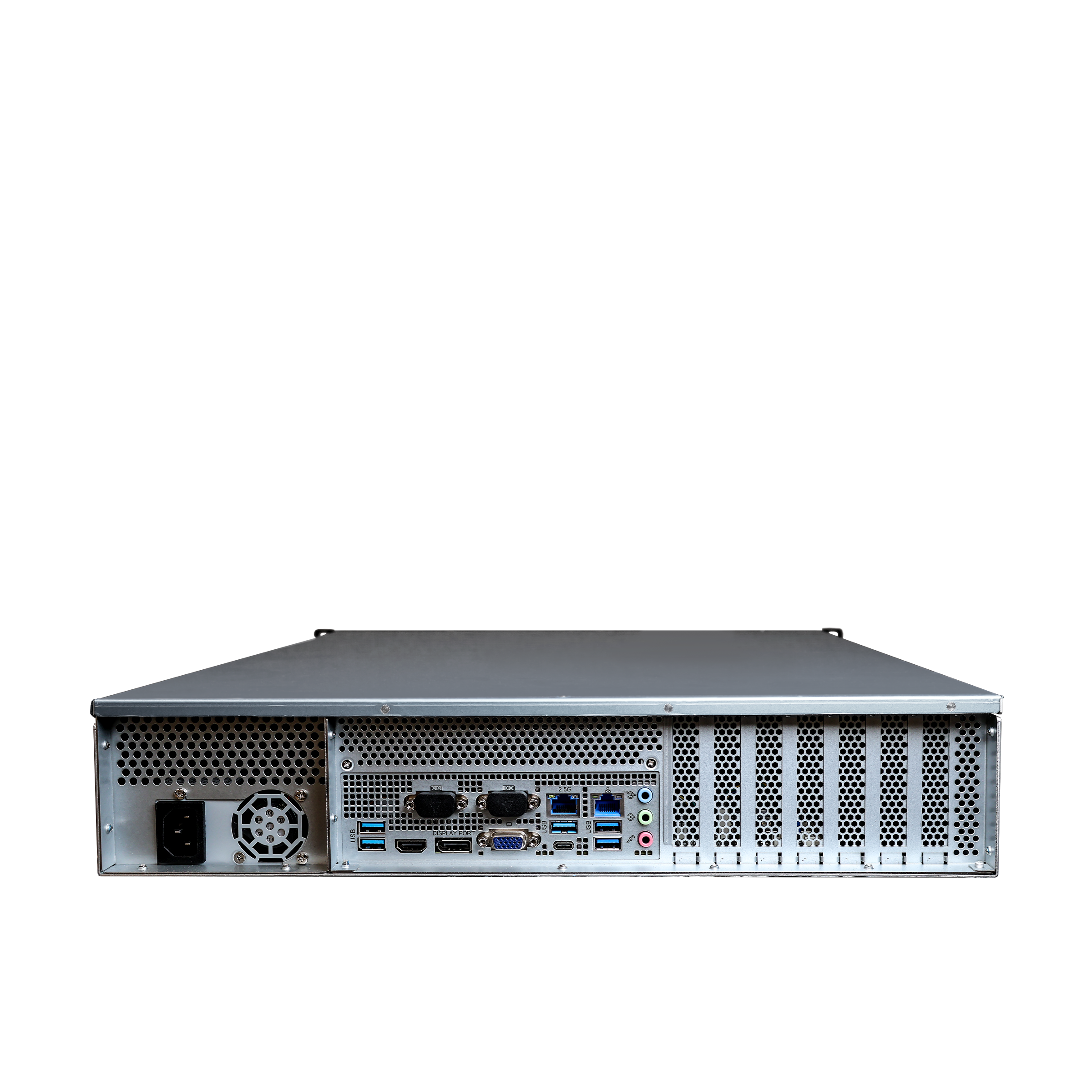

Blackjack P-Rack 2U 8-Bay Chassis
Features
  • Supports All ONVIF conformant IP cameras
  • Storage options 40-120TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • OS on separate SSD
  • Hosting DW Spectrum IPVMS for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) DW Spectrum IPVMS 4-channel licenses included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 year limited warranty

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Dual power supply

Redundancy for reliability.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Video
CPU Intel i7® processor
Display Modes Unlimited, Customizable, Sequence
Display Speed Up to 30fps per channel
Local Video Outputs For initial configuration and server management, DVI, True HD, 1 display output at a time
Memory 16GB
Video Card * Available at initial order only, GeForce 210 512MB
Video Compression H.264, H.265
Video Operating System Linux® Ubuntu Desktop 20.04.5 LTS OS (DW-BJP2U120T-LX, DW-BJP2U100T-LX, DW-BJP2U80T-LX, DW-BJP2U60T-LX, DW-BJP2U40T-LX), Windows® 10 IoT Enterprise LTSC (DW-BJP2U80T, DW-BJP2U40T, DW-BJP2U120T, DW-BJP2U100T, DW-BJP2U60T)
OS on SSD 150GB SSD
Max throughput (Mbps) 600Mbps
Storage
Raw internal storage options 040TB  060TB  080TB  100TB  120TB
RAID Options No RAID
Max HDD Bay 6 x SATA HDD, 7 x SATA HDD
Maximum Storage 100TB (DW-BJP2U100T-LX, DW-BJP2U100T), 80TB (DW-BJP2U80T, DW-BJP2U80T-LX, DW-BJP2U60T), 40TB (DW-BJP2U40T-LX), 60TB (DW-BJP2U60T-LX), 120TB (DW-BJP2U120T-LX, DW-BJP2U120T)
Performance
Playback Functions Calendar, Event search, Smart motion search, Thumbnail search, Timeline
PTZ control ONVIF
Recording Modes Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
System Operation Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Ethernet Ports (Product Specification) * Available at initial order only, Option: DW-R2NIC - upgrade dual 1GB NIC card OR DW-R4NIC - upgrade quad 1GB NIC card *
Pre-loaded VMS software DW Spectrum® IPVMS
Network Remote Software Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Mobile Plus, DW Spectrum Mobile App
Electrical
Power Consumption 400W, A UPS is recommended
General
Accessories Keyboard, Mouse
Included IP licenses 4
Operating Temperature and Humidity 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Rail kit Included
Recorder Dimensions (H X W X D) 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm)
Recording Licenses (Optional. Sold Separately) Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Lifetime upgrades are included with no annual renewal fees.
USB interface Yes
Warranty 5 Year Limited Warranty
Weight (barebone, HDD not included) 40.95 lbs (18.57 kg)
Certification CE  FCC  NDAA Compliance  ONVIF Conformant  TAA Compliance
Form Factor Rack mount

Part Numbers

Model #*

Storage Size

DW-BJP2U40T
40TB
DW-BJP2U60T
60TB
DW-BJP2U80T
80TB
DW-BJP2U100T
100TB
DW-BJP2U120T
120TB
* For Linux OS models, add -LX at the end of the part number.

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC016
Single DW Spectrum IPVMS License - allows up to 16-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPIOLSC001 IP I/O Module License - Supported devices IP I/O Modules are automatically discovered and can be used to trigger system events, actions, and alerts.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.

Documents

Title Type
DW-BJP rail kit Installation Instructions
pdf Download
DW-BJP2U datasheet - French
pdf Download
DW-BJP2U datasheet - Spanish
pdf Download
Blackjack Brochure
pdf Download
DW-BJP2UxT AE specifications
doc Download
DW-BJP(R)2UxT CAD Drawing
dwg Download
Blackjack P-Rack Quick Start Guide
pdf Download
DW-BJP2U datasheet
pdf Download

Software

Title Type Release Notes Version Update Date Compatibility Size
DW Spectrum IPVMS Latest Software Ext. URL v5.1.2.37996 07/20/2023 N/A Download
DW Spectrum IPVMS C•CURE 9000 Plug-in v5.0 zip - 5.0 11/16/2022 DW Spectrum 25.77 MB Download
DW Witness Plugin for Linux v5.0.0.35746 so v5.0.0.35746 10/21/2022 0.21 MB Download
DW Witness Plugin for Windows v5.0.0.35746 dll v5.0.0.35746 10/21/2022 0.09 MB Download
