DWC-PZ21M69TW

MEGApix Pano 21MP multi-sensor vandal IP camera with fixed lenses
Features
  • 4x 6.4MP 1/1.8" image sensor at real-time 30fps
  • 21MP 180° panoramic view IP camera
  • 4x 8.0mm fixed lens
  • Fast frame rates: real-time 30fps at 21MP
  • Zero distortion anti-reflective glass
  • PoE injector included
  • Dual codecs (H.264, MJPEG) with simultaneous dual-stream
  • Two-way audio
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Alarm sensor input
  • Relay output
  • Web server built-in
  • UL listed
  • Show More

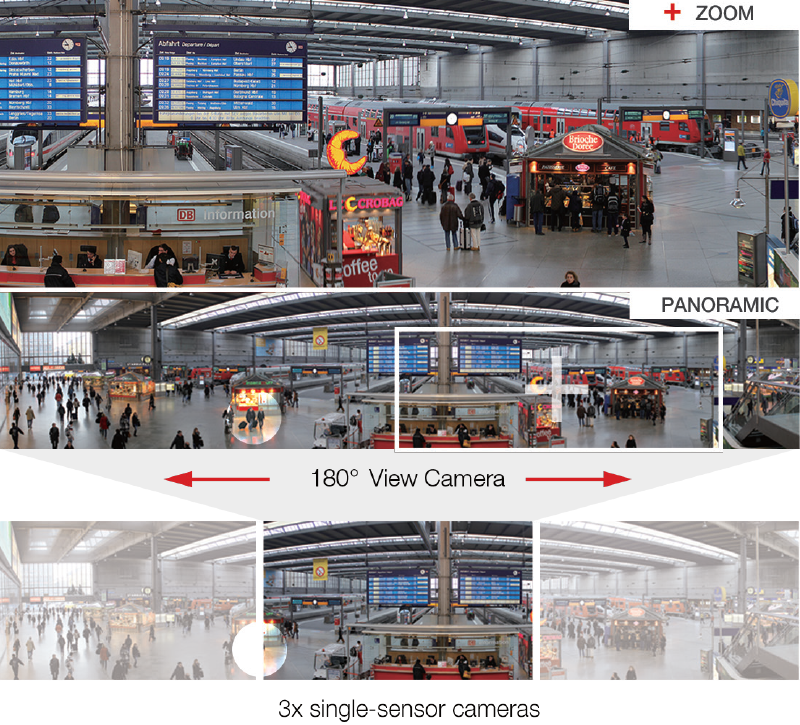

4-sensor 180° view IP camera

Get wide views and forensic details from one camera. The MEGApix® Pano™ 21MP 4-sensor cameras produce 180° views at real-time 30fps via a single PoE Plus connection.

Megapixel resolution in multi-sensor IP cameras

DW’s technology delivers crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera’s field of view.

Fast framerate

DW’s panoramic cameras can stream 180-view images up to 8K/32MP at real-time 30fps, providing a smooth video, with no loss of details between frames.

ONVIF® Conformant

DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.

Specifications

Image sensor * Stitching not supported on DW Spectrum IPVMS., 5MP 1/1.8" CMOS sensor (x4)
Maximum resolution 21MP (4x 5.3MP)
Minimum Scene Illumination in color 0.16 lux (color)
Lens
Focal Length 8.0mm (x4)
Horizontal Field of View (HFOV) 180°
Lens Type Fixed Lens
Vertical Field of View (VFOV) 30°
I/O
Audio compression G.711
I/O Alarm in/out 1 input, 1 output
I/O Audio in/out 1 input (1.0Vms, 3K ohm), 1 output
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Auto day/night, Day (color), Night (B/W)
De-fog Yes
Memory slot 4x Micro SD/SDHC/SDXC class 10 cards (cards not included), Up to 1TB micro SD / FAT32
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Alarm output activation, Email, FTP server, SD card recording
Privacy Zones 16 programmable privacy masks
Shutter Mode Auto, Manual
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
White Balance Yes
Wide Dynamic Range (WDR) D-WDR
Network
Bitrate Control Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
IP IPv4
LAN 1000Base-T (1Gbps)
Network resolution 4x H.264: 3072x1728, 640x360, 4x MJPEG: 3072x1728, 640x360
Network Web Viewer Google Chrome® browser, Linux® OS, Mac® OS, Microsoft Edge® browser, Mozilla Firefox® browser, Windows® OS
Protocol 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Security 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering, Multi-user authority
Stream Speed Up to 30fps at all resolutions
Video Bitrate 100Kbps~10Mbps, multi-rate for preview and recording
Video Compression Type H.264, MJPEG
Video Management Software Any ONVIF conformant CMS, DW Spectrum® IPVMS, Milestone Systems
Environmental
Compliance CE  FCC  NDAA Compliance  UL Listing
Environmental Operating Humidity 0-80% RH (non–condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Required. Sold separately
Mechanical
Camera Dimensions (H X W X D) 7.55" x 4.25" (192 x 108 mm)
Camera Weight 4.40 lbs (2kg)
Housing Panoramic
Housing Color White
IP rating Weather Resistant (IP66)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) Cable type #18
Power Consumption DC12V: max 21.5W, 1.79A, PoE+: max 23.2W
Power Requirements High power PoE injector included, PoE
General
Warranty 5 Year Warranty

Accessories

DWC-PZCMW
Ceiling mount bracket for multi-sensor cameras - white
Learn more
DWC-V1CNMW
Corner and pole mount bracket - White
Learn more
DWC-PZHMW
Hanging mount for selected multi-sensor cameras for custom built arm mount - white
Learn more
DWC-WMJUNCW
Junction box for wall mounts and dual-sensor IP cameras - white
Learn more
DWC-PZPARAMW
Parapet mount (requires DWC-PZADPW or DWC-PV20ADPW tilting adapter, sold separately) - white
Learn more
DWC-PZPARAMW2
Parapet mount (requires DWC-PZADPW or DWC-PV20ADPW tilting adapter, sold separately) - white
Learn more
DWC-PMB-WLW
Pole mount bracket - white
Learn more
DWC-PZADPW
Tilting adapter for DWC-PZARAMW and multi-sensor cameras - white
Learn more
DWC-PZWMW
Wall mount bracket for multi-sensor cameras - white
Learn more

Documents

Title Type
DWC-PZ21M69TW CAD drawing
dwg Download
DWC-PZ21M69TW datasheet
pdf Download
DWC-PZ21M69TW quick setup guide
pdf Download
Camera part numbering system
pdf Download
DW Panoramic Solutions
pdf Download
DW Accessories Chart
pdf Download
MEGApix Pano solutions brief
pdf Download
DWC-PZ21M69T_W AE specifications
doc Download
DWC-PZ21M69T_W user manual
pdf Download

Software

Title Type Release Notes Version Update Date Compatibility Size
DW IP Finder v4.4.22 for Linux OS run v4.4.22 01/18/2024 46.00 MB Download
DW IP Finder v4.4.22 for Windows OS exe v4.4.22 01/18/2024 27.76 MB Download
